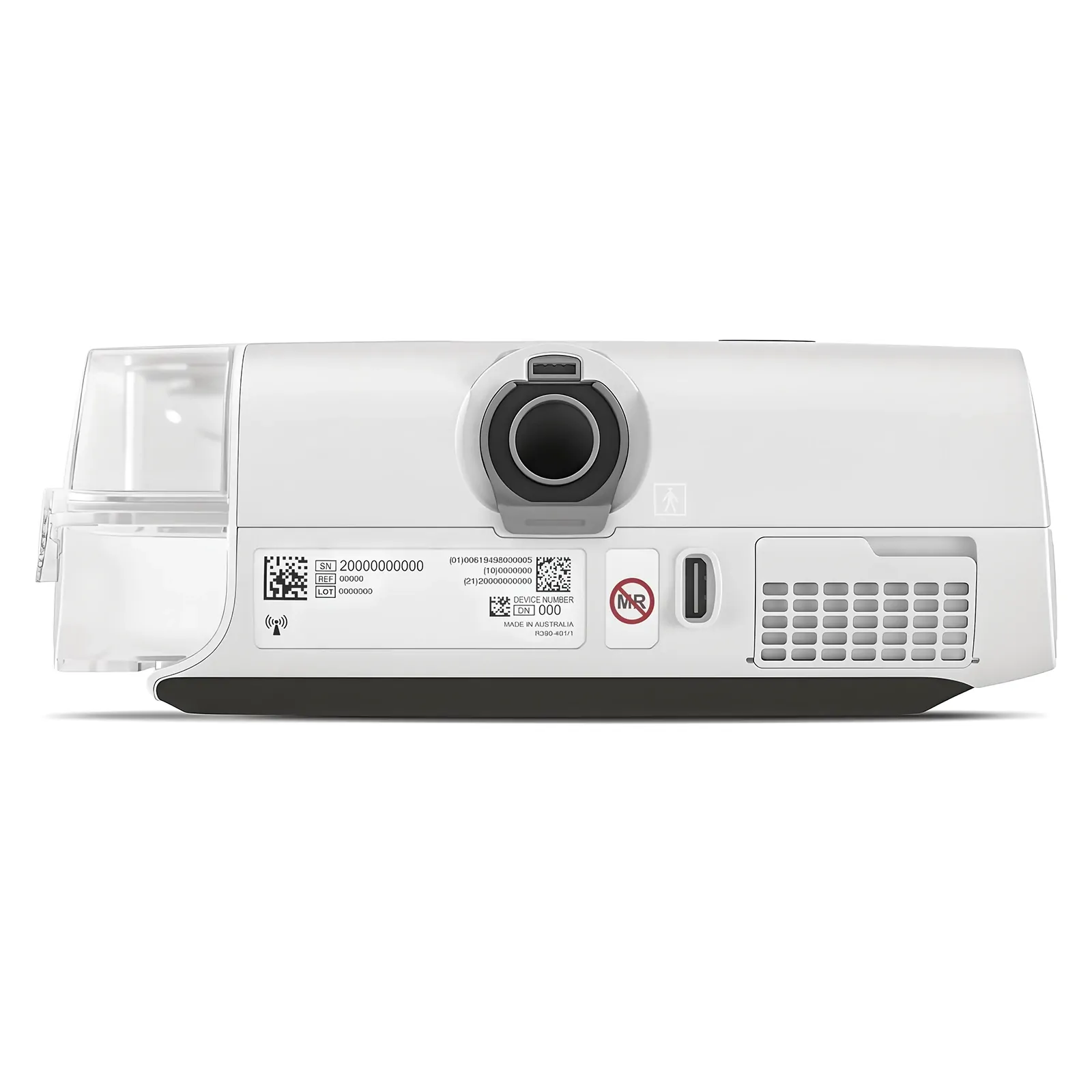

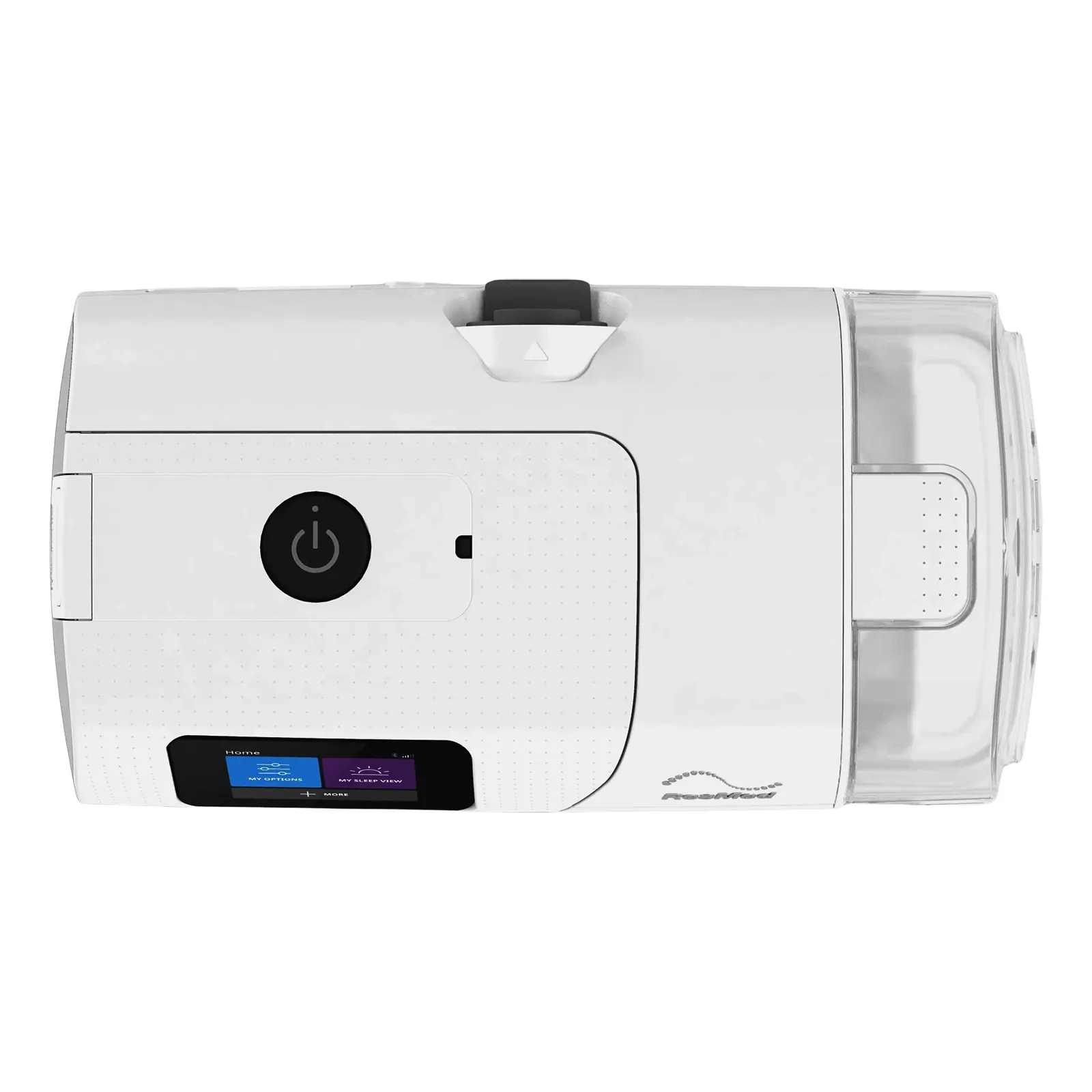

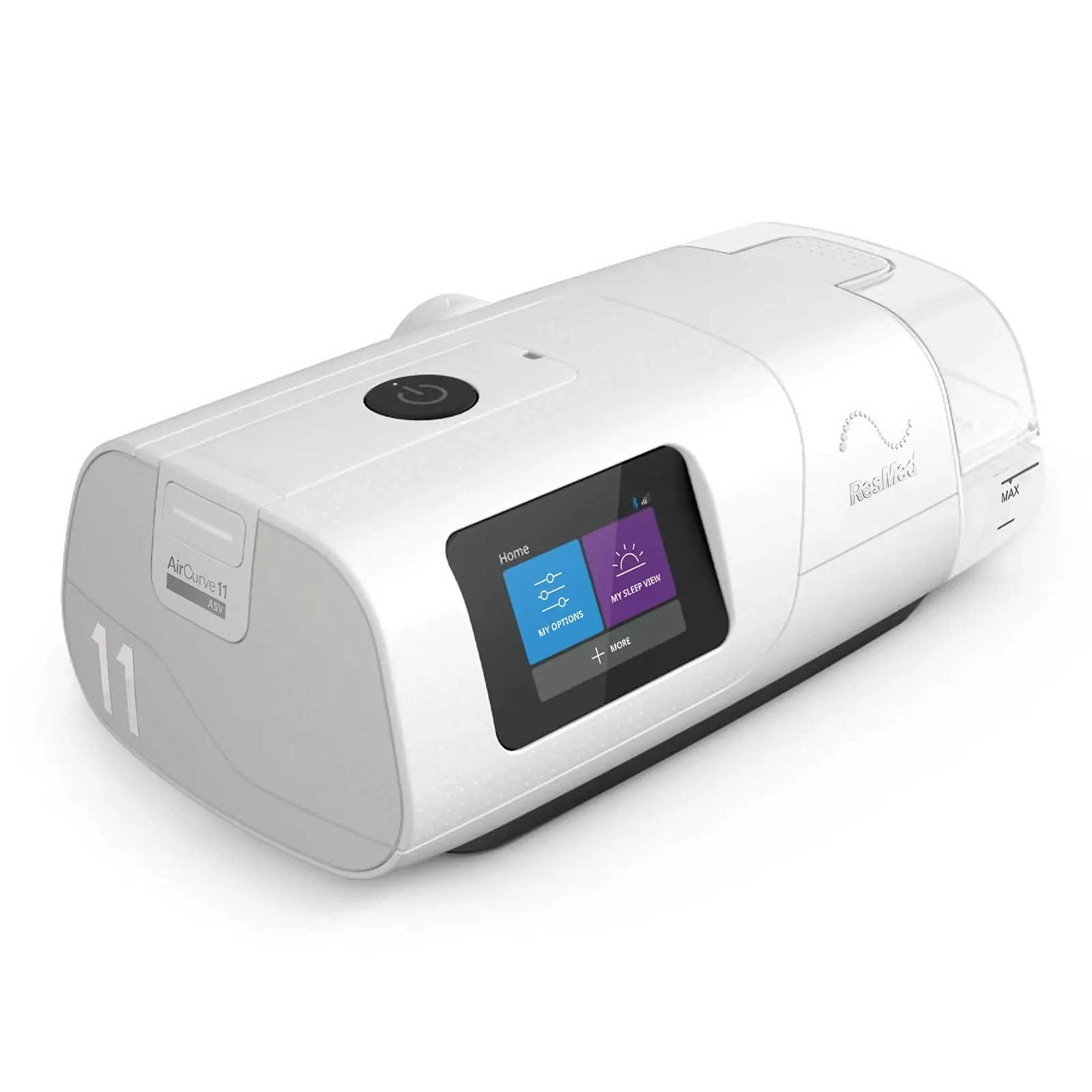

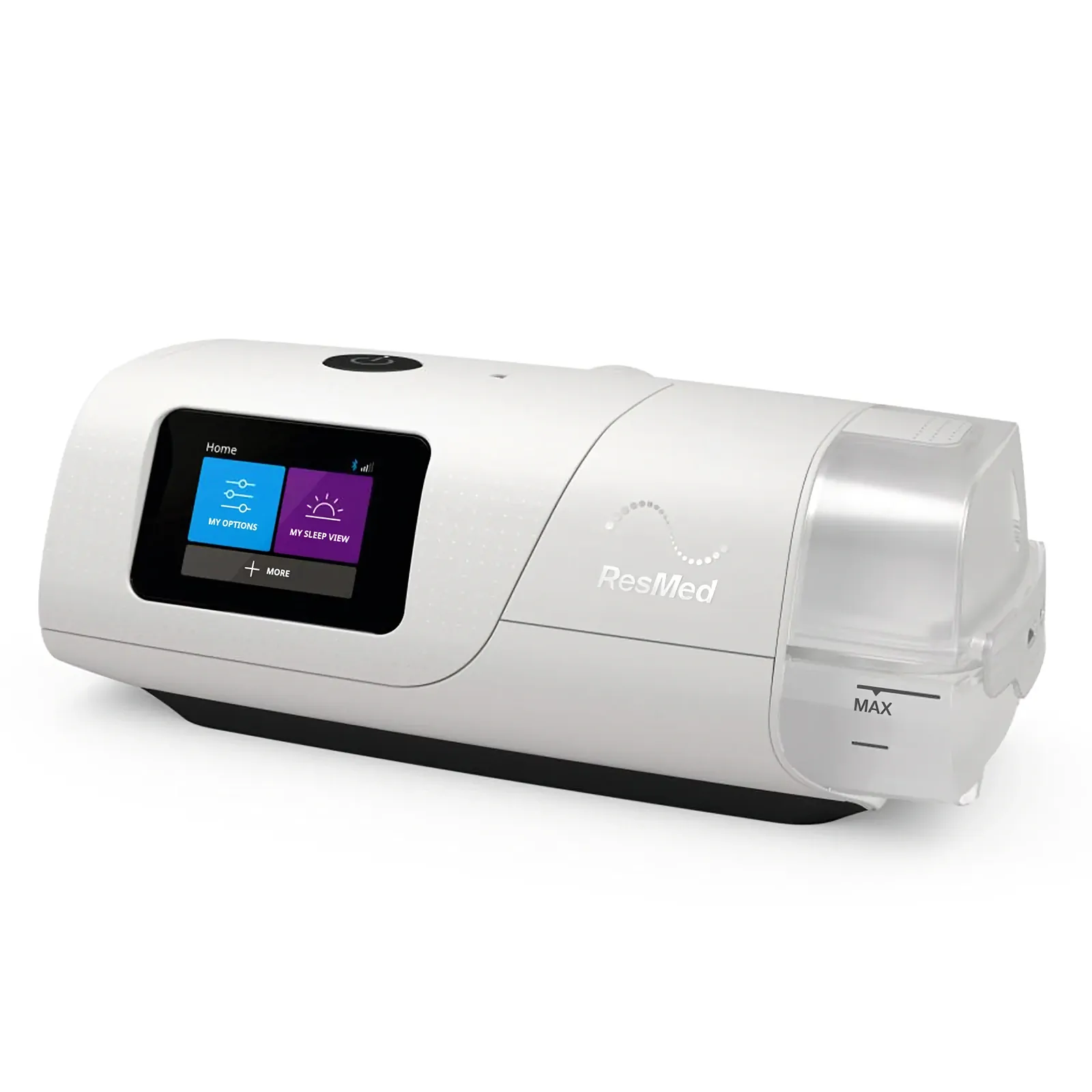

ResMed AirCurve 11 ASV Adaptive Servo-Ventilation Bilevel Machine

Prescription required.

ResMed AirCurve 11 ASV adaptive servo-ventilation bilevel machine for central, mixed and complex sleep apnea. PaceWave algorithm, AutoEPAP, Bluetooth and cellular myAir support, built-in HumidAir 11 humidifier. Australian-made. Prescription required.

The ResMed AirCurve 11 ASV is an adaptive servo-ventilation (ASV) bilevel device built for patients with complex breathing patterns — central sleep apnea (CSA), obstructive and mixed apneas, treatment-emergent CSA, or periodic breathing including Cheyne-Stokes respiration. Using ResMed's PaceWave ASV algorithm, the device monitors your breathing breath-by-breath and adapts pressure support in real time to stabilise ventilation, while the connected Air11 platform keeps your sleep specialist informed of your progress. The AirCurve 11 ASV is a prescription-only device.

Key Features

  • Adaptive servo-ventilation with PaceWave algorithm — auto-adjusts pressure support between Min PS and Max PS to maintain your target minute ventilation, breath by breath.
  • ASVAuto mode with AutoEPAP — automatically adjusts expiratory pressure within a set range to maintain upper airway patency, responding to flow limitation, snore and obstructive apneas.
  • Breath Phase Mapping — analyses 13 points on every breath cycle 50 times per second to deliver a synchronised auto backup rate when breathing pauses.
  • VSync leak management — continuously compensates for mask and mouth leak so therapy pressure stays accurate.
  • Built-in heated humidification — the included HumidAir 11 tub with Climate Control delivers consistent warmth and humidity, with optional ClimateLineAir 11 heated tubing to prevent rainout.
  • Bluetooth and cellular connectivity — pairs with the myAir app and AirView so your sleep specialist can review therapy data and make remote adjustments without an extra clinic visit.
  • Personal Therapy Assistant and Care Check-In — guided, voice-led setup videos plus regular in-app questions that help you settle into therapy.
  • Over-the-air software updates — new features and improvements delivered automatically via cellular.
  • Intuitive colour touchscreen — simple navigation for warmup, ramp, mask fit and humidity settings.
  • Designed and manufactured in Australia — ARTG listed (236085) and supported locally.

Who Is This For?

The AirCurve 11 ASV is prescribed by sleep specialists for patients whose breathing disorder isn't fully resolved by standard CPAP or fixed bilevel therapy. It's most suitable for:

  • Patients with central sleep apnea (CSA), including idiopathic CSA and Cheyne-Stokes respiration
  • Patients with treatment-emergent or persistent CSA that has appeared during CPAP therapy
  • Patients with complex (mixed) sleep apnea — a combination of obstructive and central events
  • Patients with periodic breathing patterns
  • Patients with CSA in the context of stable heart failure with preserved ejection fraction (LVEF > 45%)
  • Existing ResMed AirCurve 10 CS PaceWave 4G users upgrading to the connected Air11 platform

If you're newly diagnosed and weighing up the right device category, our guide on how to choose the right CPAP machine walks through the differences between CPAP, BiPAP and ASV. The AirCurve 11 ASV sits at the top of the BiPAP / bilevel range and is reserved for specific clinical indications.

Important — Prescription Required: The AirCurve 11 ASV is a prescription-only device. Upload your prescription at checkout and our team will configure the device to your prescribed settings before dispatch.
Important — Heart Failure Contraindication: ASV therapy is contraindicated in patients with chronic symptomatic heart failure (NYHA Class 2–4) with reduced left ventricular ejection fraction (LVEF ≤ 45%) and moderate to severe predominantly central sleep apnea. Each patient must be assessed for heart failure (including objective LVEF measurement where indicated) before starting ASV therapy. Always speak with your sleep specialist or treating physician.

What's in the Box

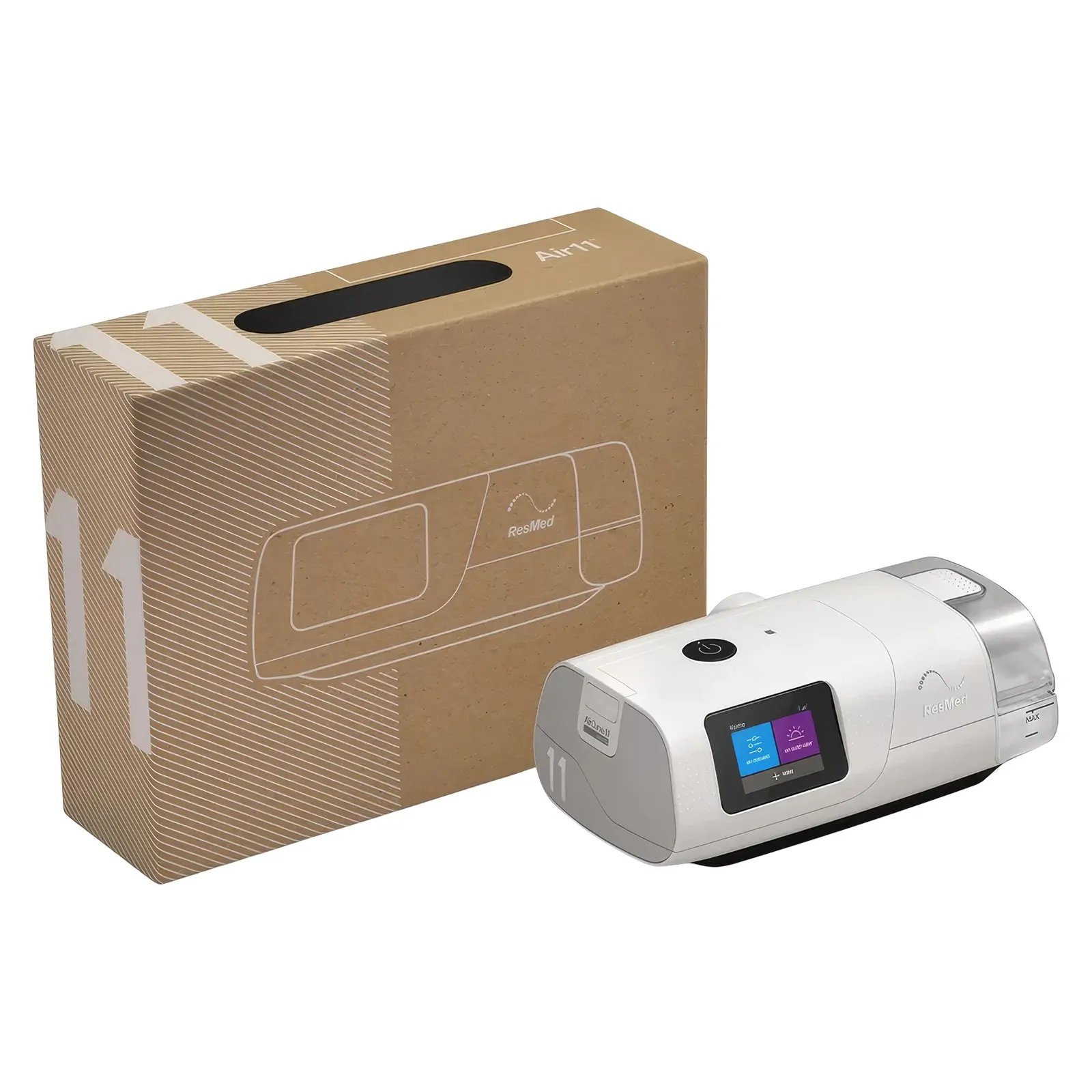

  • ResMed AirCurve 11 ASV device
  • HumidAir 11 Cleanable humidifier tub
  • ClimateLineAir 11 heated tubing or SlimLine tubing
  • Air11 90W AC power supply unit and power cord
  • Air11 air filter (standard, fitted)

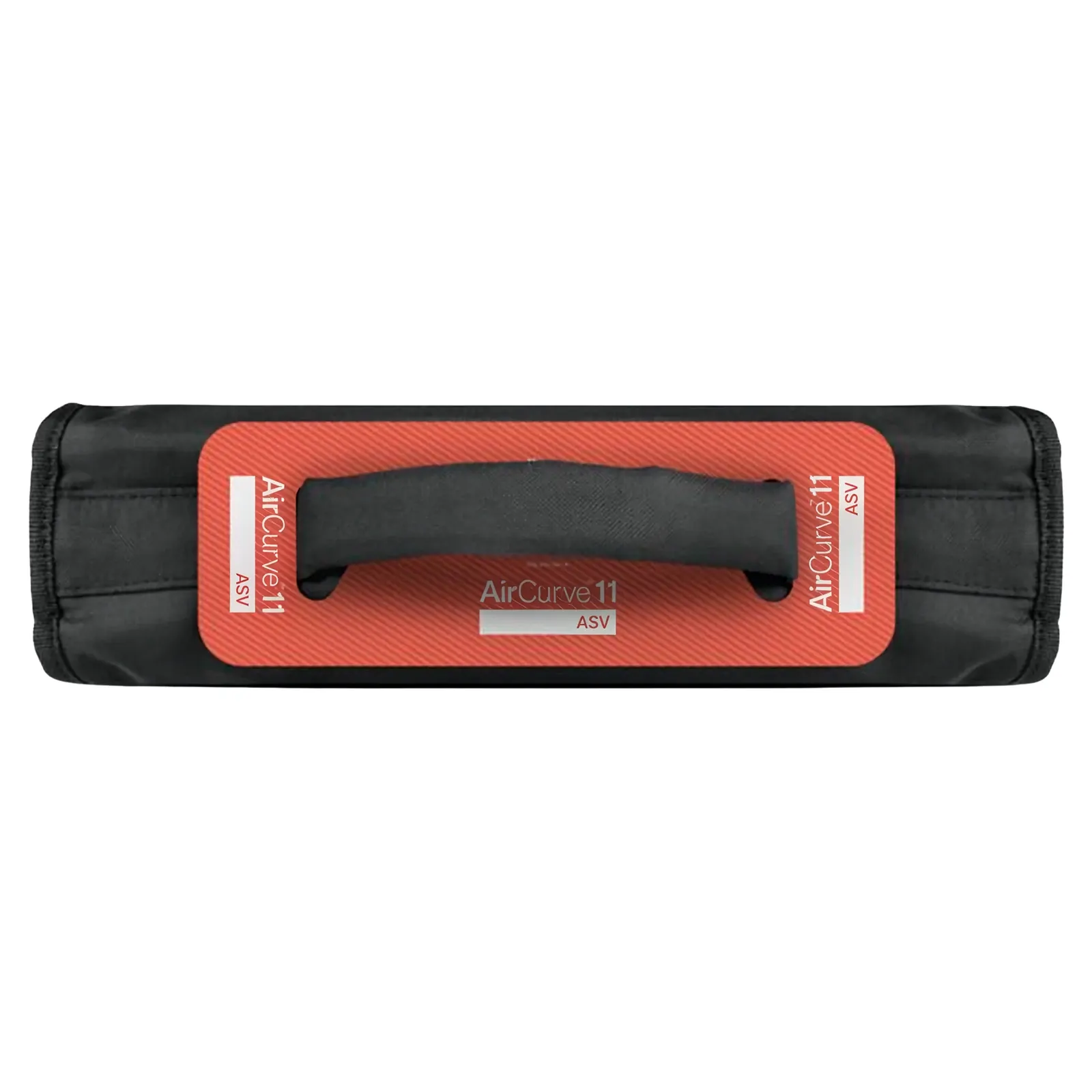

  • Travel bag
  • User guide, Quick Start Guide

AirCurce 11 ASV FAQs

Air11 Series Comparison

Feature AirSense 11 Elite AirSense 11 AutoSet AirCurve 11 VAuto AirCurve 11 ASV
Device type Continuous Positive Airway Pressure device (CPAP) Auto-adjusting pressure device (APAP) Bi-level positive airway pressure device
Indication for use^ OSA OSA OSA CSA, OSA, mixed apneas, periodic breathing
Operating pressure range (cm H2O)^^ 4–20 4–20 4–20 (CPAP)
2–25 (S), 4–25 (VAuto)		 4–20 (CPAP)
4–25 (ASV, ASVAuto)
Device default pressure (cm H2O) Start pressure: 4
Set pressure: 10		 Start pressure: 5
Min pressure: 5
Max pressure: 20		 Start pressure: 4 Start pressure: 4
Therapy modes
CPAP ✓ ✓ ✓ ✓
AutoSet — ✓ — —
AutoSet for Her — ✓ — —
VAuto — — ✓ —
S (Spontaneous) — — ✓ —
ASV* — — — ✓
ASVAuto* — — — ✓
Device features††
Detection CSA, CSR, RERA CSA, CSR, RERA — CSA
Ramp AutoRamp with sleep onset detection AutoRamp with sleep onset detection Manually selectable between 5–45 min Manually selectable between 5–45 min
Easy-Breathe waveform with EPR ✓ ✓ ✓ ✓
SmartStart/Stop feature (Independent) ✓ ✓ ✓ ✓
Care Check-In ✓ ✓ ✓ ✓
Personal Therapy Assistant** ✓ ✓ ✓ ✓
Bluetooth® connectivity ✓ ✓ ✓ ✓
Test Drive ✓ ✓ ✓ ✓
OTA: over-the-air software updates** ✓ ✓ ✓ ✓
Touch screen ✓ ✓ ✓ ✓
AutoSet Response comfort setting — ✓ — —
Optional oximetry (Bluetooth) ✓ ✓ ✓ ✓
Supplemental oxygen use Up to 15 L/min Up to 15 L/min Up to 15 L/min Up to 15 L/min
Leak management with VSync — — ✓ ✓
TiControl — Inspiratory time control — — ✓ ✓
Triggering and cycling — — ✓ ✓
Rise time adjustment — — ✓ ✓
Backup rate — — Manual Auto
Humidification
Humidifier water capacity 380 mL 380 mL 380 mL 380 mL
Climate Control with ClimateLineAir or ClimateLineAir 11† heated tubing ✓ ✓ ✓ ✓
Data
Built-in cellular technology** ✓ ✓ ✓ ✓
SD data card capable ✓ ✓ ✓ ✓
myAir** ✓ ✓ ✓ ✓
AirView with remote assist** ✓ ✓ ✓ ✓
Data storage
Detailed data on SD card (30 sessions) ✓ ✓ ✓ ✓
High-resolution flow on SD card (30 sessions) ✓ ✓ ✓ ✓
Compliance and summary data on SD card/device (365 sessions) ✓ ✓ ✓ ✓

Tap a device to view its specifications.

AirSense 11 Elite
Device type CPAP
Indication^ OSA
Pressure range^^ 4–20 cm H2O
Default pressure Start: 4
Set: 10
Therapy modes
CPAP ✓
Features††
Detection CSA, CSR, RERA
Ramp AutoRamp with sleep onset detection
Easy-Breathe with EPR ✓
SmartStart/Stop ✓
Care Check-In ✓
Personal Therapy Assistant** ✓
Bluetooth® ✓
Test Drive ✓
OTA updates** ✓
Touch screen ✓
Optional oximetry ✓
Supplemental oxygen Up to 15 L/min
Humidification & Data
Water capacity 380 mL
Climate Control + heated tubing† ✓
Built-in cellular** ✓
SD card capable ✓
myAir** ✓
AirView with remote assist** ✓
AirSense 11 AutoSet
Device type APAP (auto-adjusting)
Indication^ OSA
Pressure range^^ 4–20 cm H2O
Default pressure Start: 5
Min: 5
Max: 20
Therapy modes
CPAP ✓
AutoSet ✓
AutoSet for Her ✓
Features††
Detection CSA, CSR, RERA
Ramp AutoRamp with sleep onset detection
Easy-Breathe with EPR ✓
SmartStart/Stop ✓
Care Check-In ✓
Personal Therapy Assistant** ✓
Bluetooth® ✓
Test Drive ✓
OTA updates** ✓
Touch screen ✓
AutoSet Response comfort ✓
Optional oximetry ✓
Supplemental oxygen Up to 15 L/min
Humidification & Data
Water capacity 380 mL
Climate Control + heated tubing† ✓
Built-in cellular** ✓
SD card capable ✓
myAir** ✓
AirView with remote assist** ✓
AirCurve 11 VAuto
Device type Bi-level
Indication^ OSA
Pressure range^^ 4–20 (CPAP)
2–25 (S)
4–25 (VAuto) cm H2O
Default pressure Start: 4
Therapy modes
CPAP ✓
VAuto ✓
S (Spontaneous) ✓
Features††
Ramp Manually selectable, 5–45 min
Easy-Breathe with EPR ✓
SmartStart/Stop ✓
Care Check-In ✓
Personal Therapy Assistant** ✓
Bluetooth® ✓
Test Drive ✓
OTA updates** ✓
Touch screen ✓
Optional oximetry ✓
Supplemental oxygen Up to 15 L/min
Leak management with VSync ✓
TiControl (inspiratory time) ✓
Triggering and cycling ✓
Rise time adjustment ✓
Backup rate Manual
Humidification & Data
Water capacity 380 mL
Climate Control + heated tubing† ✓
Built-in cellular** ✓
SD card capable ✓
myAir** ✓
AirView with remote assist** ✓
AirCurve 11 ASV
Device type Bi-level
Indication^ CSA, OSA, mixed apneas, periodic breathing
Pressure range^^ 4–20 (CPAP)
4–25 (ASV, ASVAuto) cm H2O
Default pressure Start: 4
Therapy modes
CPAP ✓
ASV* ✓
ASVAuto* ✓
Features††
Detection CSA
Ramp Manually selectable, 5–45 min
Easy-Breathe with EPR ✓
SmartStart/Stop ✓
Care Check-In ✓
Personal Therapy Assistant** ✓
Bluetooth® ✓
Test Drive ✓
OTA updates** ✓
Touch screen ✓
Optional oximetry ✓
Supplemental oxygen Up to 15 L/min
Leak management with VSync ✓
TiControl (inspiratory time) ✓
Triggering and cycling ✓
Rise time adjustment ✓
Backup rate Auto
Humidification & Data
Water capacity 380 mL
Climate Control + heated tubing† ✓
Built-in cellular** ✓
SD card capable ✓
myAir** ✓
AirView with remote assist** ✓

Abbreviations: OSA: obstructive sleep apnea; CSA: central sleep apnea; EPAP: expiratory positive airway pressure; IPAP: inspiratory positive airway pressure; PS: pressure support; RERA: respiratory effort related arousals; CSR: Cheyne-Stokes respiration.

ALWAYS READ THE LABEL AND FOLLOW THE INSTRUCTIONS FOR USE. You or your customers should speak to their doctor about symptoms and whether a CPAP device is suitable.

* ASV therapy is contraindicated in patients with chronic, symptomatic heart failure (NYHA 2–4) with reduced left ventricular ejection fraction (LVEF ≤ 45%) and moderate to severe predominant central sleep apnea.

** Cellular communication depends on network availability. Some AirSense 10 devices may not have cellular communication.

^ The device is indicated for the treatment in patients weighing more than 66 lb (30 kg) and is intended for use in the hospital and home. Refer to the clinical guide for details.

^^ The pressure range could differ with the therapy mode. Refer to the clinical guide for details.

† Only compatible with Air11 devices.

†† Not all features available on all therapy modes.

Specification Detail
ResMed product code 39109
ARTG ID 236085
GTIN 619498391097
Indication OSA (in patients > 30 kg); ASV and ASVAuto modes also indicated for central and/or mixed apneas, or periodic breathing
Therapy modes ASV, ASVAuto, CPAP
Maximum device pressure 25 cm H₂O
EPAP range 4–15 cm H₂O (0.2 cm H₂O increments)
Pressure Support (Min / Max) Min PS: 0–6 cm H₂O; Max PS: 5–20 cm H₂O
CPAP pressure range 4–20 cm H₂O
Ramp Off / 5–45 minutes (5-minute increments)
Backup rate Auto (synchronised via Breath Phase Mapping)
Leak management VSync automatic leak compensation
Supplemental oxygen Compatible with up to 15 L/min
Humidifier capacity 380 mL (HumidAir 11 Cleanable tub)
Connectivity Cellular + Bluetooth Low Energy
Sound (with standard tubing & humidifier) 27 dBA sound pressure level
Dimensions (H × W × D, with humidifier) 94.5 × 259.4 × 138.5 mm
Weight (with humidifier tub) 1.229 kg
Power supply Air11 90W AC adaptor (100–240 V, 50–60 Hz)
FAA approved for in-flight use Yes (RTCA/DO-160)
Country of manufacture Australia
Device warranty 2 years. 5 years with Sleepvantage registgration.
SKU RES39109
Model # 39109
ARTG # 236085
UPC/EAN 619498391097
Brand ResMed
Shipping Weight 2.3000kg
Shipping Width 0.371m
Shipping Height 0.113m
Shipping Length 0.287m
Shipping Cubic 0.012031901m3
