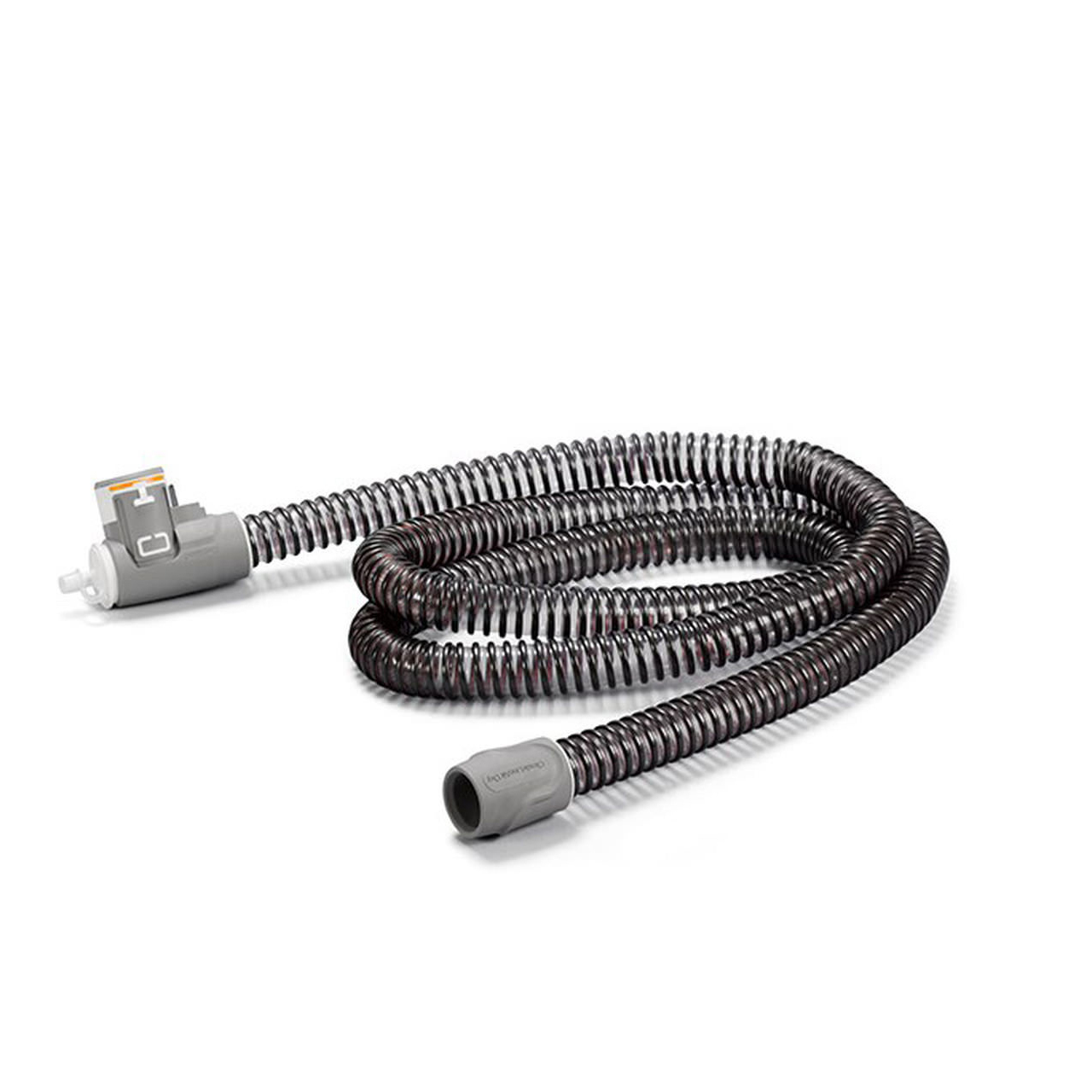

ResMed ClimateLineAir Heated Tubing with Oxygen Connection for AirSense 10

Heated tubing to suit AirSense 10 ResMed CPAP Machines

This tubing comes with a built-in oxygen connector if you require supplemental oxygen supply. Part of the ClimateLine Air Series.
The ClimateLine Air Oxy Heated Tubing is another alternative of the ClimateLine Air series.
This tubing comes with a built-in oxygen connector if you require supplemental oxygen supply.

ALWAYS READ THE LABEL AND FOLLOW THE INSTRUCTIONS FOR USE. IF SYMPTOMS PERSIST, TALK TO YOUR HEALTHCARE PROFESSIONAL.

Specification	Value
Operating temperature	+41°F to +95°F (+5°C to +35°C) The airflow for breathing can be higher than room temperature. Device remains safe at 104°F (40°C) ambient.
Operating humidity	10% to 95% RH, non-condensing
Operating altitude	Sea level to 8,500 ft (2,591 m); 1013 hPa to 738 hPa
Storage & transport temperature	−4°F to +140°F (−20°C to +60°C)
Storage & transport humidity	5% to 95% RH, non-condensing
EMC / tubing resistance & compliance	Refer to the device User Guide.

Specification

Value

Operating temperature

+41°F to +95°F (+5°C to +35°C)
The airflow for breathing can be higher than room temperature. Device remains safe at 104°F (40°C) ambient.

Operating humidity

10% to 95% RH, non-condensing

Operating altitude

Sea level to 8,500 ft (2,591 m); 1013 hPa to 738 hPa

Storage & transport temperature

−4°F to +140°F (−20°C to +60°C)

Storage & transport humidity

5% to 95% RH, non-condensing

EMC / tubing resistance & compliance

Refer to the device User Guide.

Temperature limits
Parameter	Value
Temperature range	+16°C to +30°C (+60°F to +86°F)
Cut-out	+41°C (+106°F)

Parameter

Value

Temperature range

+16°C to +30°C (+60°F to +86°F)

Cut-out

+41°C (+106°F)

Operating pressure range
Parameter	Value
Maximum recommended pressure	30 cm H₂O (30 hPa)

Parameter

Value

Maximum recommended pressure

30 cm H₂O (30 hPa)

Physical — Air tubing
Air tubing	Material	Length	Inner diameter
ClimateLineAir	Flexible plastic and electrical components	2 m (6′6″)	15 mm (0.6″)
ClimateLineAir Oxy	Flexible plastic and electrical components	1.9 m (6′4″)	19 mm (0.75″)
